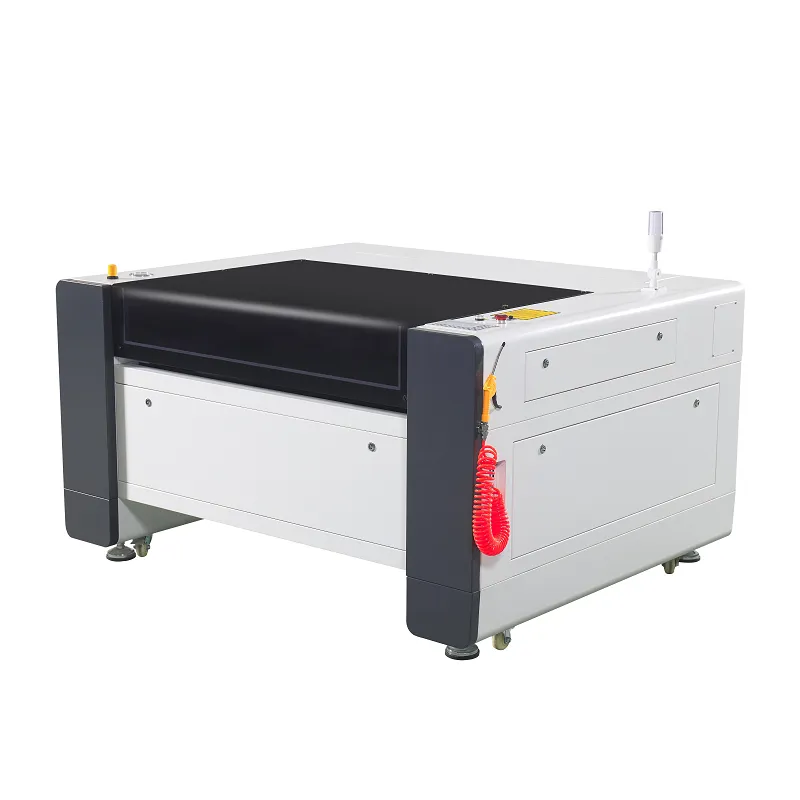

Khoom Qhia Txog CCD Yees Duab Laser Tej Tshuab:
Lub koob yees duab CCD lub laser txiav yog laser txiav ntaus nrog CCD koob yees duab. Nws muab cov thev naus laus zis Laser Laser, siv CCD cov koob yees duab los saib xyuas thiab ua kom pom tseeb tias lub nqaj laser yog ua raws li txoj kev txiav.
Nta
High - Kev Ua Haujlwm Ce2 Laser
Lub koob yees duab CCD laser tej tshuab yog nruab nrog cov iav 100W Lub nthwv dej yog ruaj khov ntawm 10.64 microns, kom ntseeg lub zog siab ntom thiab ruaj khov ntawm lub nqaj laser.
Kev ua haujlwm yooj ywm
Qhov chaw ua haujlwm ntawm cov cuab yeej tuaj yeem ncav cuag 35-1 / 2 nti × 23 nti × 900 mm), muab cov chaw txaus siab rau kev txiav thiab engraving loj workpieces. Nyob rau tib lub sijhawm, kev ua haujlwm tau raug xaiv los ua cov hniav hom lossis honeycomb yam raws li tus neeg siv yuav tsum tau ua kom tau raws li cov khoom siv sib txawv.
High - precision muab thiab kev daws teeb meem zoo
Lub koob yees duab CCD laser tej tshuab muaj qhov tseeb ntawm ± 0.01 mm thiab kev daws teeb meem ntawm ntau dua 1,000 dpi, kom ua tiav qhov tseeb thiab zoo ntawm kev ua tiav.
Dav cov khoom yoog tau
Cov khoom siv tuaj yeem ua ntau yam khoom siv, suav nrog tab sis tsis txwv rau ntoo, ntaub, tawv, thiab lwm yam ({mm), nyob ntawm cov khoom hom.
Dab tsi tuaj yeem ua nrog CCD lub koob yees duab laser txiav laser?
|
Muaj cuab yeej siv rau kev siv |
|||||
|
Khoom |
Kos |
Txiav |
Khoom |
Kos |
Txiav |
|
Ntoo Ntoo |
√ |
√ |
Ntawv |
√ |
√ |
|
Tus kws ntxawv |
√ |
√ |
Tus txhais |
√ |
√ |
|
Lub khob |
√ |
× |
Nias Board |
√ |
√ |
|
Muab ob npaug rau phaj |
√ |
√ |
Yas |
√ |
√ |
|
Xyoob |
√ |
√ |
Plywood |
√ |
√ |
|
Mdf |
√ |
√ |
Iav yas |
√ |
√ |
|
Daim ntaub |
√ |
√ |
Plua Xim Hlau |
√ |
√ |
|
Tawv nyuj |
√ |
√ |
Yas |
√ |
√ |
|
Zeb |
√ |
× |
Iav dawb |
√ |
× |
|
Matte cam |
√ |
√ |
Coated hlau |
√ |
× |
|
Lub pobzeb |
√ |
× |
Lwm Cov Ntaub Ntawv |
Nug peb, peb yuav sim rau koj |
|
Cov qauv sib txawv uas qhia tau CCD Lub Koob Yees Duab Laser Tej Tshuab:
|
Kev Txiav Thickness ntawm Txawv Laser Fais Rau Siv |
|||
|
Laser Fais (W) |
Acrylic (hli) |
Plywood (hli) |
MDF (hli) |
|
40W |
3 |
2 |
1.5 |
|
60W |
8 |
5 |
3 |
|
80W |
12 |
8 |
6 |
|
100W |
15 |
12 |
9 |
|
150W |
25 |
20 |
15 |
Lub ntsiab tseem ceeb qhia ntawm cov ntoo cutter thiab engraver
Cov ntsiab lus tswv yim ntawm CCD lub koob yees duab laser tej tshuab
|
Tshuab Hom |
LB1390 |
|
LASER Fais |
100W |
|
Laser hom |
CO2 Seem Iav 10.64 um |
|
Thaj chaw ua haujlwm |
35-1 / 2 "× 23" (1300 hli × 900mm) |
|
Ua hauj lwm |
Hniav Cov Lus lossis Honeycomb Rooj |
|
Max. Engraving Ceev |
23-5 / 8 "/ s (600 hli / s) |
|
Max. Txiav Ceev |
15-3 / 4 "/ s (400 hli / s) |
|
Engraving Thickness |
{{00 - 3 / 8 "(0 - 10 mm) nyob ntawm cov khoom |
|
Tej thickness |
{{00 - 3 / 8 "(0 - 10 mm) nyob ntawm cov khoom |
|
Nrhiav kom muaj qhov tseeb |
± 0.01 hli |
|
Cov Lus Qhia Tawm |
Tsawg dua los yog sib npaug rau 1,000 dpi |
|
Min. Lub cim loj |
1 hli × 1 hli |
|
Min. Cim tsiaj |
2 hli × 2 hli |
|
Kev khiav hauj lwm kub |
41 ℉ {- 122} ℉ (5℃- 50 degree) |
|
Cov Ntaub Ntawv Hloov Hloov |
USB 2.0 |
|
Qhov chaw ib puag ncig |
Windows XP / 2000 / 7/8 / 10 |
|
Daim duab hom kev txhawb nqa |
Cov ntaub ntawv coreldraw txheeb xyuas (BMP, JPEG, Ai, plt thiab lwm yam) |
|
Kev Sib Txawv Xim |
Txog li 256 xim |
|
Cua Txias Hom |
Circulating Dej Txias Thiab Tiv Thaiv System |
Dab tsi yuav cov ntim ntawm lub koob yees duab CCD no Laser Laser laser tej tshuab?
Cov ntsiab lus them nqi:
30% T / T ua ntej, cov nyiaj tshuav them ua ntej ua zaub mov xa tuaj. Irrevocable L / C thaum pom.
Nyem:
Cov khoom siv no tuaj yeem thauj mus rau cov neeg siv thoob ntiaj teb los ntawm hiav txwv thiab huab cua, thiab hiav txwv thauj tau tuaj yeem xa mus rau lub qhov rooj, thiab muaj huab cua thauj tau kuj muaj. Kev thauj mus hiav txwv hiav txwv tsis tshua muaj nqi thiab ntev hauv lub sijhawm hloov chaw, thaum huab cua thauj tau luv luv hauv lub sijhawm hloov pauv thiab muaj nqi siab. Cov khoom thauj Cua cua tuaj yeem yog DHL, FEDEX, UPS thoob ntiaj teb kev mus thauj khoom thoob plaws hauv kev thauj mus los. Koj zoo siab tos txais cov lus pub dawb ntawm WhatsApp, Email, lossis hu kom qhia peb ntawm koj cov khoom thiab txoj haujlwm.
